Insulating Lining
| BRAND NAME |
MgO ≥ |
SiO2 ≤ |
Al2O3 ≤ |
Fe2O3 ≤ |
CaO ≤ |
Residual Carbon (C) |
C.C.S. (MPa) ≥ |
B.D. (g/ cm3) ≥ |
A.P. (%) ≤ |
CAP (1100 °C/2 hrs) Max. |
HMOR (1400 °C/30 min) Min. |
| INSB AL-50 |
|
44 |
52 |
1.0 |
|
|
0.5 |
96-126 |
|
3 |
1100 |
| INSB AL-45 |
|
44 |
54 |
1.0 |
|
|
0.7 |
96-126 |
|
3 |
1200 |
Shaped Safety Lining
| BRAND NAME |
MgO ≥ |
SiO2 ≤ |
Al2O3 ≤ |
Fe2O3 ≤ |
CaO ≤ |
Residual Carbon (C) |
C.C.S. (MPa) ≥ |
B.D. (g/ cm3) ≥ |
A.P. (%) ≤ |
CAP (1100 °C/2 hrs) Max. |
HMOR (1400 °C/30 min) Min. |
| SFTM-90 |
90 |
5.0 |
0.5 |
1.5 |
3.0 |
|
50 |
2.92 |
20 |
|
|
| SFTM-92 |
92 |
4.0 |
1.0 |
1.5 |
2.5 |
|
55 |
2.93 |
18 |
|
|
| SFTM-93 |
93 |
4.0 |
1.0 |
1.0 |
2.5 |
|
55 |
2.93 |
18 |
|
|
| SFTM-95 |
92 |
2.0 |
0.8 |
1.0 |
2.5 |
|
55 |
2.95 |
18 |
|
|
Working Lining - Wall Upper Part
| BRAND NAME |
MgO ≥ |
SiO2 ≤ |
Al2O3 ≤ |
Fe2O3 ≤ |
CaO ≤ |
Residual Carbon (C) |
C.C.S. (MPa) ≥ |
B.D. (g/ cm3) ≥ |
A.P. (%) ≤ |
CAP (1100 °C/2 hrs) Max. |
HMOR (1400 °C/30 min) Min. |
| ARCLINE-30A |
78 |
1.0 |
0.25 |
0.6 |
1.2 |
9-12 |
40 |
3.00 |
4 |
12% |
10MPa |
| ARCLINE-30N |
78 |
1.2 |
0.3 |
0.7 |
1.0 |
10-12 |
35 |
3.02 |
4 |
12% |
7MPa |
| ARCLINE-32A |
78 |
0.6 |
0.24 |
0.6 |
1.2 |
10-12 |
40 |
3.02 |
4 |
12% |
10MPa |
| ARCLINE-32AS |
78 |
0.6 |
0.25 |
0.8 |
1.2 |
9-12 |
40 |
3.02 |
5 |
12% |
10MPa |
Hot Spots Area
| ARCLINE 40A |
76 |
1.0 |
0.3 |
0.8 |
1.2 |
12-14 |
35 |
2.98 |
4 |
12% |
12MPa |
| ARCLINE 42A |
76 |
0.7 |
0.24 |
0.8 |
1.3 |
12-14 |
38 |
3.02 |
4 |
12% |
12MPa |
| ARCLINE 42N |
76 |
0.6 |
0.2 |
0.6 |
1.2 |
12-14 |
38 |
3.02 |
4 |
12% |
12MPa |
| ARCLINE 51A |
74 |
0.6 |
0.3 |
0.5 |
1.4 |
14-16 |
38 |
2.98 |
4 |
12% |
12MPa |
| ARCLINE 52A |
74 |
0.7 |
0.24 |
0.8 |
1.2 |
14-16 |
38 |
2.98 |
4 |
12% |
12MPa |
| ARCLINE 52AS |
74 |
0.7 |
0.24 |
0.8 |
1.2 |
14-16 |
38 |
2.98 |
4 |
12% |
12MPa |
Door Area
| ARCLINE 41AS |
76 |
0.7 |
0.3 |
0.7 |
1.4 |
12-14 |
35 |
2.98 |
4 |
12% |
10MPa |
| ARCLINE 30AS |
78 |
1.0 |
0.25 |
0.8 |
1.1 |
9-12 |
40 |
3.00 |
5 |
12% |
8MPa |
| ARCLINE 32AS |
78 |
0.7 |
0.25 |
0.8 |
1.4 |
9-12 |
40 |
3.02 |
5 |
12% |
10MPa |
Slag Line & Cold Spot
| ARCLINE 40A |
76 |
1.0 |
0.3 |
0.7 |
1.2 |
12-14 |
35 |
2.98 |
4 |
12% |
12MPa |
| ARCLINE 40N |
76 |
0.8 |
0.3 |
0.7 |
1.0 |
12-14 |
40 |
3.00 |
5 |
12% |
8MPa |
| ARCLINE 41A |
76 |
0.7 |
0.3 |
0.6 |
1.2 |
12-14 |
35 |
3.00 |
4 |
12% |
12MPa |
| ARCLINE 42A |
76 |
0.6 |
0.24 |
0.7 |
1.2 |
12-14 |
38 |
3.02 |
4 |
12% |
12MPa |
| ARCLINE 42N |
76 |
0.6 |
0.2 |
0.6 |
1.2 |
12-14 |
38 |
3.02 |
4 |
10% |
12MPa |
| ARCLINE 51A |
74 |
0.7 |
0.3 |
0.7 |
1.2 |
14-16 |
35 |
2.94 |
4 |
12% |
14MPa |
| ARCLINE 52A |
74 |
0.7 |
0.3 |
0.7 |
1.4 |
14-16 |
35 |
2.94 |
4 |
12% |
14MPa |
| ARCLINE 52AS |
74 |
0.7 |
0.24 |
0.8 |
1.2 |
14-16 |
38 |
2.98 |
4 |
10% |
12MPa |
Wall Upper Part Metal
| ARCLINE 20N |
80 |
1.2 |
0.3 |
0.7 |
1.5 |
8-10 |
35 |
3.00 |
4 |
12% |
7MPa |
| ARCLINE 30N |
78 |
1.2 |
0.3 |
0.7 |
1.0 |
10-12 |
35 |
3.02 |
5 |
12% |
7MPa |
| ARCLINE 31A |
78 |
1.0 |
0.2 |
0.5 |
1.0 |
9-12 |
40 |
3.02 |
5 |
12% |
10MPa |
| ARCLINE 32A |
76 |
1.0 |
0.2 |
0.6 |
1.2 |
10-12 |
40 |
3.02 |
4 |
12% |
10MPa |
| ARCLINE 32N |
78 |
0.7 |
0.1 |
0.5 |
1.4 |
9-12 |
40 |
3.02 |
5 |
12% |
10MPa |
| ARCLINE 40AS |
76 |
0.8 |
0.2 |
0.7 |
1.2 |
12-14 |
35 |
2.98 |
4 |
12% |
12MPa |
| ARCLINE 31AS |
78 |
1.0 |
0.2 |
0.5 |
1.0 |
9-12 |
40 |
3.02 |
5 |
12% |
10MPa |
| ARCLINE 20S |
80 |
1.2 |
0.3 |
0.7 |
1.4 |
8-10 |
40 |
2.98 |
4 |
10% |
7MPa |
| ARCLINE 20ND |
80 |
1.2 |
0.3 |
0.7 |
1.4 |
8-10 |
40 |
2.98 |
4 |
10% |
7MPa |
Wall Lower Part & Bottom
| ARCLINE 10A |
84 |
1.4 |
0.3 |
1.0 |
1.4 |
4-6 |
40 |
3.05 |
6 |
12% |
8MPa |
| ARCLINE 20N |
80 |
1.2 |
0.3 |
0.7 |
1.5 |
8-10 |
35 |
2.98 |
4 |
12% |
7MPa |
| ARCLINE 10D |
82 |
1.5 |
0.3 |
0.7 |
1.8 |
6-8 |
40 |
3.00 |
4 |
12% |
7MPa |
| ARCLINE 10N |
82 |
1.5 |
0.3 |
0.7 |
1.8 |
6-8 |
40 |
3.00 |
4 |
12% |
7MPa |
| ARCLINE 20ND |
82 |
1.5 |
0.3 |
0.7 |
1.8 |
6-8 |
40 |
2.98 |
4 |
12% |
7MPa |
End Bricks
| FUREND ASC-42F |
|
1.3 |
70 |
1.0 |
1.5 |
12-14 |
35 |
3.00 |
8 |
12% |
14MPa |
| FUREND ASC-42FT |
|
1.3 |
70 |
1.2 |
1.5 |
10-12 |
38 |
2.98 |
8 |
12% |
14MPa |
| FUREND ASC-42FBT |
|
1.3 |
70 |
1.5 |
2.0 |
10-12 |
35 |
2.95 |
8 |
12% |
12MPa |
EBT Surrounding Block
| FURBLOCK 30A |
78 |
1.2 |
0.3 |
0.8 |
1.2 |
10-12 |
30 |
2.98 |
6 |
12% |
10MPa |
| FURBLOCK 30N |
78 |
1.2 |
0.3 |
0.8 |
1.2 |
10-12 |
32 |
3.00 |
6 |
12% |
8MPa |
| FURBLOCK 31AS |
78 |
0.7 |
0.3 |
0.7 |
1.2 |
10-12 |
30 |
2.92 |
6 |
12% |
10MPa |
| FURBLOCK 32AF |
78 |
0.5 |
0.2 |
0.5 |
1.0 |
10-12 |
50 |
3.00 |
5 |
12% |
12MPa |
| FURBLOCK 32AP |
78 |
0.5 |
0.2 |
0.5 |
1.0 |
10-12 |
30 |
2.90 |
6 |
12% |
12MPa |
| FURBLOCK 41AS |
76 |
0.7 |
0.3 |
0.7 |
1.4 |
12-14 |
35 |
2.98 |
4 |
12% |
10MPa |
| FURBLOCK 30AT |
78 |
0.7 |
0.3 |
0.7 |
1.4 |
10-12 |
30 |
2.98 |
6 |
10% |
10MPa |
| FURBLOCK 32AS |
78 |
0.7 |
0.3 |
0.7 |
1.4 |
10-12 |
30 |
2.92 |
6 |
12% |
12MPa |
| FURBLOCK 32AST |
78 |
0.7 |
0.3 |
0.7 |
1.4 |
10-12 |
35 |
2.95 |
4 |
10% |
10MPa |
EBT Sleeve
| FURSLEEVE 41A |
76 |
0.7 |
0.3 |
0.7 |
1.4 |
12-14 |
30 |
2.92 |
6 |
12% |
12MPa |
| FURSLEEVE 42A |
76 |
0.7 |
0.3 |
0.7 |
1.4 |
12-14 |
30 |
2.92 |
6 |
12% |
12MPa |
| FURSLEEVE 42AS |
76 |
0.7 |
0.3 |
0.7 |
1.4 |
12-14 |
30 |
2.92 |
6 |
12% |
12MPa |
| FURSLEEVE 42AST |
76 |
0.7 |
0.3 |
0.7 |
1.4 |
12-14 |
35 |
2.95 |
4 |
10% |
10MPa |
| FURSLEEVE 31A |
78 |
0.6 |
0.2 |
0.6 |
1.2 |
10-12 |
35 |
2.98 |
4 |
12% |
12MPa |
| FURSLEEVE 41AS |
76 |
0.6 |
0.3 |
0.7 |
1.3 |
12-14 |
35 |
2.98 |
6 |
12% |
10MPa |
| FURSLEEVE |
76 |
0.6 |
0.3 |
0.7 |
1.3 |
12-14 |
35 |
2.98 |
6 |
12% |
10MPa |
Purging Plug
| FURPP-50A |
75 |
0.5 |
0.2 |
0.4 |
1.2 |
13-15 |
35 |
2.96 |
5 |
10% |
14MPa |
| FURPP-51A |
74 |
0.5 |
0.1 |
0.4 |
1.4 |
14-16 |
32 |
2.95 |
4 |
10% |
14MPa |
| FURPP-51AS |
74 |
0.5 |
0.1 |
0.4 |
1.0 |
14-16 |
38 |
2.96 |
4 |
10% |
14MPa |
| FURPP-51ASB |
74 |
0.4 |
0.1 |
0.3 |
1.0 |
14-16 |
40 |
2.98 |
4 |
10% |
14MPa |
Purging Plug Surroundings Block
| FURBLOCK-32AST |
78 |
0.7 |
0.3 |
0.5 |
1.4 |
10-12 |
35 |
2.95 |
4 |
12% |
12MPa |
| FURBLOCK-41AST |
76 |
0.7 |
0.3 |
0.5 |
1.4 |
12-14 |
32 |
2.93 |
4 |
12% |
12MPa |
Anode Sleeve
| DMCr 20 |
55 |
2.0 |
6.0 |
12 |
20 |
|
45 |
3.22 |
15 |
|
|
| DMCr 22 |
55 |
2.0 |
6.0 |
12 |
22 |
|
60 |
3.26 |
15 |
|
|
| DMCr 25F |
55 |
1.6 |
5.0 |
11 |
25 |
|
70 |
3.30 |
15 |
|
|
| DMCr 25S |
55 |
1.6 |
5.0 |
10 |
22 |
|
80 |
3.32 |
12 |
|
|
| MCr 20D |
52 |
2.0 |
6.0 |
12 |
20 |
|
60 |
3.20 |
16 |
|
|
| MCr 20S |
52 |
2.0 |
6.0 |
12 |
20 |
|
90 |
3.22 |
16 |
|
|

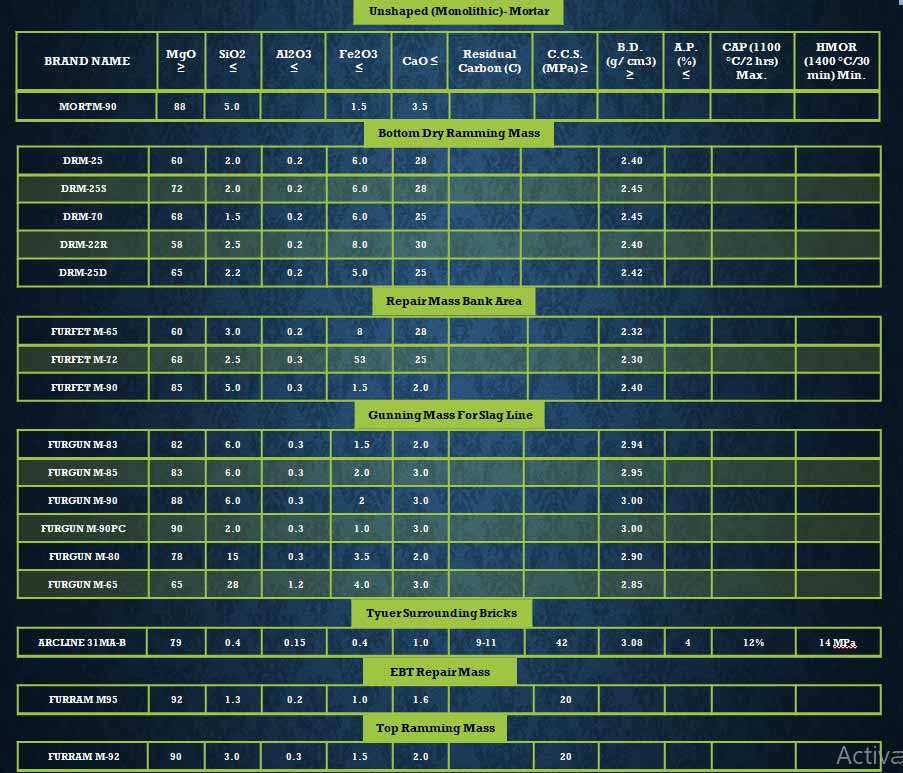

Unshaped (monolithic) Mortar
Bottom Dry Ramming Mass
| DRM-25 |
60 |
2.0 |
0.2 |
6.0 |
28 |
|
|
2.40 |
|
|
|
| DRM-25S |
72 |
2.0 |
0.2 |
6.0 |
28 |
|
|
2.45 |
|
|
|
| DRM-70 |
68 |
1.5 |
0.2 |
6.0 |
25 |
|
|
2.45 |
|
|
|
| DRM-22R |
58 |
2.5 |
0.2 |
8.0 |
30 |
|
|
2.40 |
|
|
|
| DRM-25D |
65 |
2.2 |
0.2 |
5.0 |
25 |
|
|
2.42 |
|
|
|
Repair Mass Bank Area
| FURFET M-65 |
60 |
3.0 |
0.2 |
8 |
28 |
|
|
2.32 |
|
|
|
| FURFET M-72 |
68 |
2.5 |
0.3 |
53 |
25 |
|
|
2.30 |
|
|
|
| FURFET M-90 |
85 |
5.0 |
0.3 |
1.5 |
2.0 |
|
|
2.40 |
|
|
|
Repair Mass Bank Area
| FURFET M-65 |
60 |
3.0 |
0.2 |
8 |
28 |
|
|
2.32 |
|
|
|
| FURFET M-72 |
68 |
2.5 |
0.3 |
53 |
25 |
|
|
2.30 |
|
|
|
| FURFET M-90 |
85 |
5.0 |
0.3 |
1.5 |
2.0 |
|
|
2.40 |
|
|
|
